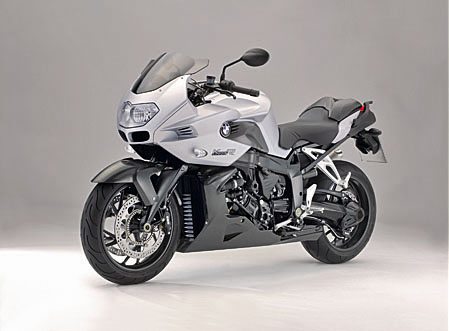

The new K 1200 R Sport Pictures, image, specification.New K 1200 R Sport is the fourth model in the BMW's most powerful model series. As the model designation already indicates, the new K 1200 R Sport is based on the BMW K 1200 R.Perhaps the most essential feature of the new K 1200 R Sport is the semi-fairing mounted firmly to the frame and bearing the same headlight as on the R 1200 S. Integrated harmoniously into the overall design of the motorcycle, the semi-fairing retains a clear and free view of the impressive engine and running gear technology. The fairing not only emphasizes the sporting character of the big bike, but also enhances its wide range of riding opportunities and general use versus the K 1200 R.
Specifications Of BMW K 1200 R Sport :
Capacity cc 1,157
Bore/stroke mm 79/59
Max output 163HP (120kW) at 10,250 RPM
Max torque 127/94 lb-ft (127Nm) at 8,250 RPM
Inline 4 cylinders
Compression ratio/fuel grade 13:1; Premium plus (98 RON)
Valve/gas DOHC, 4 valves per cylinder
Valve diameter, intake 32mm, exhaust 27.5mm
Throttle butterfly diameter 46mm
Fuel Injected
Electrical System
Alternator 580W
Battery V/Ah 12/14 maintenance-free
Headlight H7 at 55W; High beam H7 at 55 W
Starter 0.7kW
Transmission - Gearbox
Clutch Multiple-plate oil bath clutch, 151 mm diameter
Gearbox six-speed
Primary transmission ratio 1.559
Gear ratios I 2.398; II 1.871; III 1.525; IV 1.296; V 1.143; VI 1.015
Shaft drive; Final drive 2.91
Suspension
Frame: Composite aluminium frame, internal molding and extrusion pressed profiles and die-castings
Suspension, front BMW Duolever
Suspension, rear BMW Paralever
Spring travel, front: 115mm; rear:135
Castor 101mm
Wheelbase 1,571mm
Steering unit angle ° 61
Brakes: front Double-disc 320mm. Rear Single disc 265mm
BMW Motorrad Integral ABS (semi-integral) available as an option
Wheels: Light-alloy cast. Front 3.50 x 17 MTH 2; Rear 5.50 x 17 MTH 2
Optional Rear Wheel: 6.00 x 17 MTH 2
Tires: Front 120/70 ZR 17; Rear 180/55 ZR 17; Optional 190/50 ZR 17 Rear
Weights and Dimensions
Length, overall 2,228mm
Width, overall, with mirrors 856mm
Handlebar width, without mirrors 785mm
Seat height 820mm (Optional 790mm)
Weight, unladen, with full tank 241kg
Max permissible weight 450kg
Tank capacity 19 liters
Performance and Fuel Consumption
Fuel consumption: 90 km/h ltr/100 km 4.7; 120 km/h ltr/100 km 5.5
Acceleration: 0 to 100 km/h 2.9 seconds
Top speed, approx km/h 200 plus
